Virtual Lab: Battery Water Wheel Analogy
University of Virginia
© 2003-Present, John C. Bean

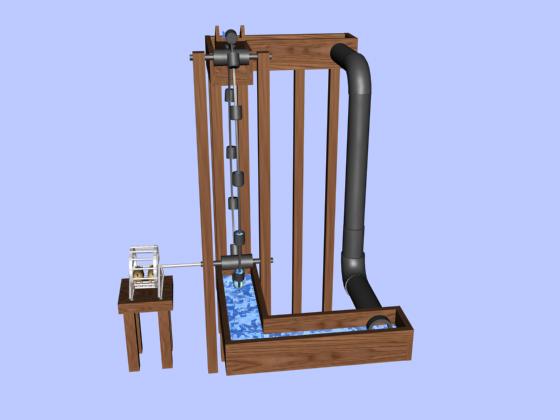

This webpage describes a water flow analogy with an electrical battery. Here, the gerbil supplies the energy which generates water flow.

To start this tour, click the "Next Scene" button at the bottom of this page.

To navigate further, use the buttons at the bottom of the page. (You can also move between scenes by using your keyboard’s arrows, and then play movies by clicking enter/return).

At any point, you can jump ahead by clicking an icon above the picture.

To see related webpages on this website, click the "Related Pages" button above.
