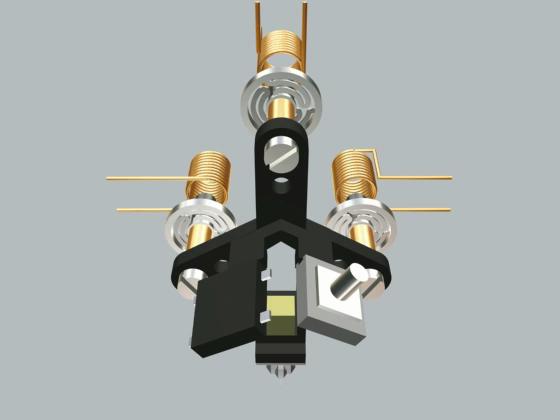

Y horizontal movement is then generated by energizing the left and center electromagnets (the left twice as strongly as the center).

The tripod then twists around the spring at the base of the right leg.
