Virtual Lab: Scanning Tunneling Microscope (STM)
 University of Virginia


© 2003-Present, John C. Bean

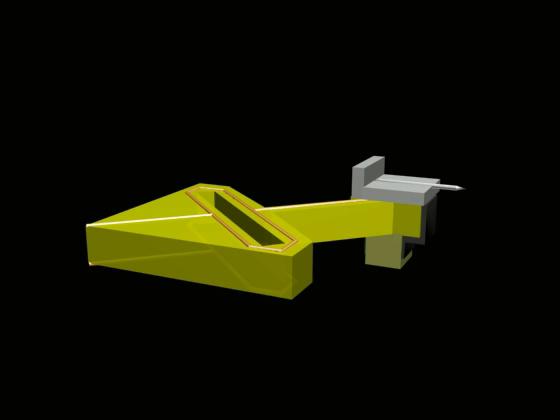

Here we see the movement of the Y, or vertical drive.

To allow full motion of this arm, its piezoelectric crystal simply rests upon a screw below (upon which it is free to slide front-to-back and side-to-side).
