Virtual Lab: Three Different Capacitors
University of Virginia


© 2003-Present, John C. Bean

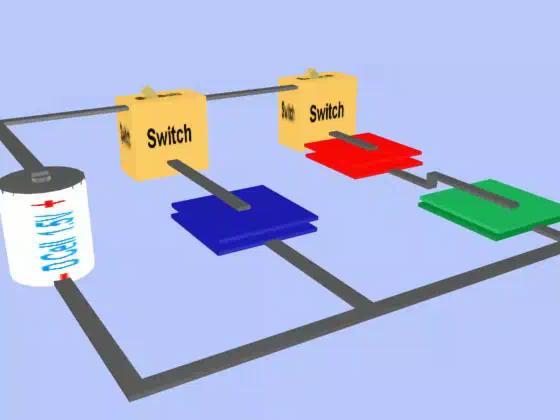

When the first switch is thrown the cell produces a potential difference (voltage) across the blue capacitor.

The voltage across the capacitor is the same (1.5 V) as the cell.
