Virtual Lab: Scanning Probe Microscopes
 University of Virginia


© 2003-Present, John C. Bean

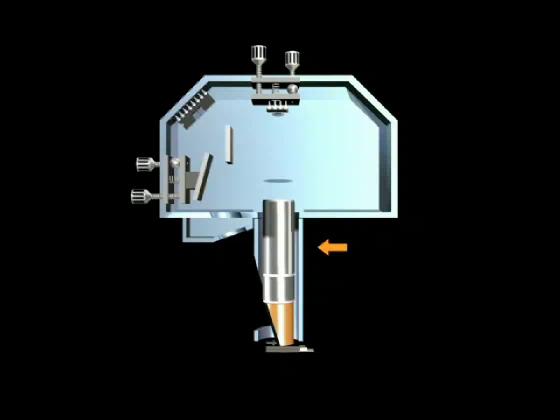

The large piezoelectric is shaped into a tube so that a laser beam can shoot down its axis.

The laser is a small integrated circuit near the very top of the head. It is mounted on an adjustable stage that allows one to precisely aim the laser beam.
